Brand new Lenovo PS-5241-02 240w Power Supply

For Lenovo PS-5241-02 240W Power Supply ThinkCentre M57E, enjoys 3 Months Warranty,30-Day Money Back!

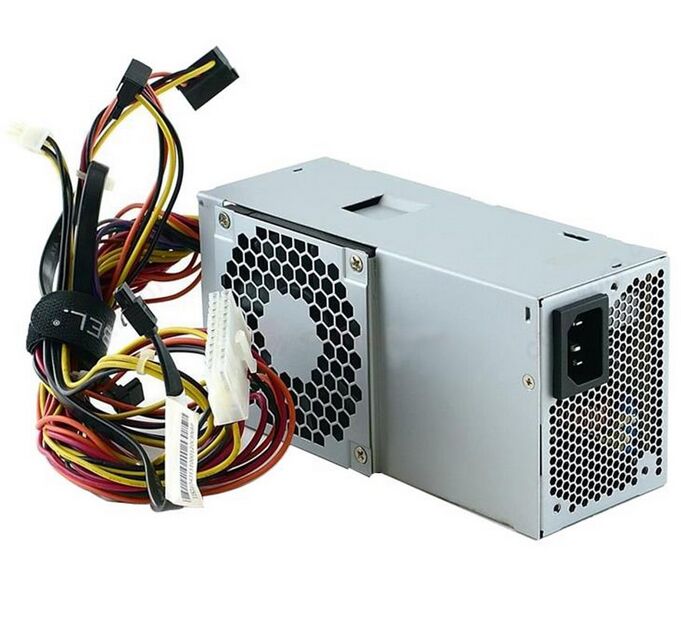

Lenovo PS-5241-02 Power Supply

Brand new PS-5241-02 - Lenovo 240-Watts PFC Power Supply for ThinkCentre M57E.All power supplies are tested by our in house technicians and they are guaranteed to function properly.


  • Model: PS-5241-02
  • Dimension: 175mm*70mm*85mm (W*H*L)
  • Wattage: 240 WATT
  • Condition:
    Brand new, Tested, Working Good

Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+

  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Type PS-5241-02
Dimension 175mm*70mm*85mm (W*H*L)
Dimension of Fan 80cm
Efficiency > 65% Full load
AC Input Voltage 90-264V, normal:100-240V
DC Output +3.3V +5.08V +12V -12V +5.08VSB
Max Current 8A 14A 17A 0.5A 2.5A
Max Array Output 86W 240W
Output Wire Interface 24-Pin Main*1 4-Pin CPU*1 15-Pin SATA*2

Part No. PC9053, FSP240-50SBV, PS-5241-02/05/06 , PS-5181-02VG-ROHS PC9059 , HK340-71FP

Compatible For lENOVO Desktop:
Lenovo s520 s505z s525 s5r6 s5r3 s5r1


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO PS-5241-02 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
