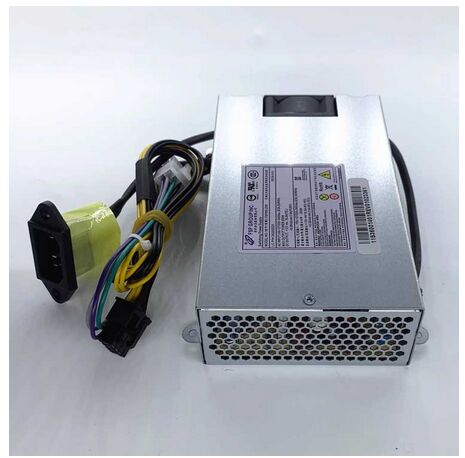

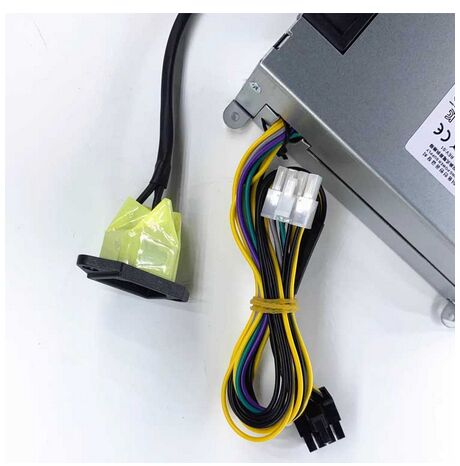

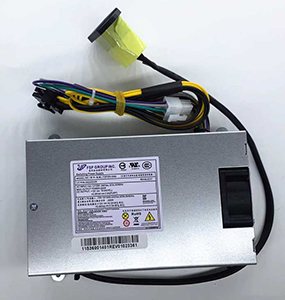

Brand new Lenovo HKF2002-32 200W Power Supply

HKF2002-32 - For Lenovo B340 B540 B520e 200W Power Supply HKF2002-32 APA006 FSP200-20SI , enjoys 3 Months Warranty,30-Day Money Back!

Lenovo HKF2002-32 Power Supply

Brand New Lenovo B520 B520E AIO 8PIN Power Supply FSP200-20SI HKF2002-32 PS-3251-01.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: HKF2002-32 APA006 FSP200-20SI
  • Applicable Models: For Lenovo B340 B540 B520e
  • Wattage: 200W WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

APA006 200W Lenovo B540 Power Supply 36002045 AcBel
Part Number : 36002045
Model Number : APA006
Compatible Model No. HKF2002-32,DPS-250AB-71 B,DPS-250AB-84 B
Max Power : 200W
Input : 100-127V~，50/60Hz, 6.0A 200-240V~,50/60Hz，3.0A
Output : +12.0V—16.0A; +5.08Vsb—2.0A
Detail Description : 200W Power Supply APA006 36002045 For AcBel Lenovo B540

Compatible Lenovo Model: Lenovo B325I B540 B320I B520E B320


Compatible Part Number: FSP200-20SI, DPS-250AB-71A, FSP250-20AI, 36002045, APA006, APC005, PS-3251-01, HKF2002-32



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO HKF2002-32 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
