For Lenovo HK850-53PP 750w Power Supply

5P50V03190 SP50H29610 750W Power Supply For Lenovo ThinkStation P350 P360 HK850-53PP , enjoys 6 Months Warranty,30-Day Money Back!

Lenovo HK850-53PP Power Supply

HK850-53PP Huntkey/Lenovo Desktop-PC power supply 750 Watt.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Model: HK850-53PP
  • Main Connector: 10-Pin Connector
  • Wattage: 750 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
PSU For Lenovo P340 P350 P360 M930T 10Pin 750W Power Supply PA-3751-1 VA HK850-53PP 5P50V03190 5P50V03191

MAX. OUTPUT POWER: 750W
AC INPUT
100-240V ~ 10A (50-60Hz)
DC OUTPUT
+12V1 = 56A
+12V2 = 30A
-12V = 0.2A

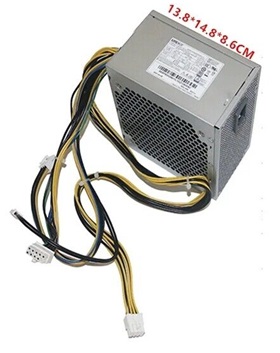

Dimensions
150mm x 86mm x 140mm

FRU 5P50V03190
PN SP50H29610
MPN HK850-53PP PA-3751-1 VA

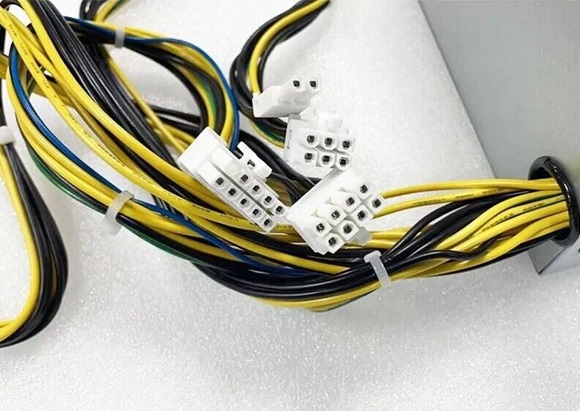

Connectors
(1) 10-Pin ATX Connector (P1) (12.5")
(1) 8-Pin Power Connector (P2) (28")
(1) 6+2 -Pin Connector (P4) (18")

Compatible for : Lenovo ThinkStation P340 (30DH) , Lenovo ThinkStation P348 Workstation (30EQ) , Lenovo ThinkCentre M90s (11D7) , Lenovo ThinkStation P350 Workstation (30E4) , Lenovo ThinkStation P350 Workstation (30E3) , Lenovo ThinkStation P350 Workstation (30E5) , Lenovo ThinkStation P350 Workstation (30E6) , Lenovo ThinkCentre M80t (11EL) , Lenovo ThinkCentre M80t (11EK) , Lenovo ThinkStation P340 (30DM)



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO HK850-53PP Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
