Home :: Lenovo Power Supply :: Lenovo HK350-12PP Power Supply

Brand new Lenovo HK350-12PP 250W Power Supply For Lenovo H50-50 E50-00 E50-05 Erazer X310

250W 54Y8934 HK350-12PP Lenovo H50-50 E50-00 E50-05 Erazer X310, enjoys 6 Months Warranty,30-Day Money Back!

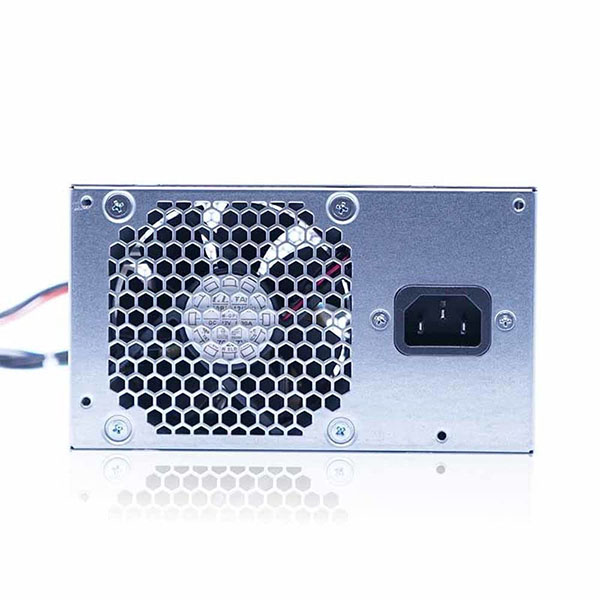

Lenovo HK350-12PP Power Supply

Brand new HK350-12PP 54Y8934 SP50A36170 Server Power Supply 250W PSU.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • FRU : PCE026
  • Compatible Model: FSP250-30AGBAA,HK350-12PP
  • Wattage: 250 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
MOLEL : PCE026 SP50A36169 54Y8934
AC INPUT : 100-240V~,50-60Hz,4.0A
SKU: GSB515
DC OUTPUT :
+12V1(MB)==17.0A
+12V2(CPU)==15.0A
-12.0V==0.2A
TOTAL POWER 250W
power size : 15CM *14CM *8.5CM
Interface: 10PIN+4PIN

Part No.
HK350-12PP, 54Y8934, SP50A36170, PCE026, SP50A36169 ,PA-3251-1, PCH016

Compatible For lENOVO Desktop:
For Lenovo H50-50 E50-00 E50-05
Erazer X310 SP50A36170 PCE027
Lenovo 54Y8934 ThinkServer TS150
Lenovo IdeaCenter 710-25ISH
Lenovo Ideacentre 700 s FSP250-30



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO HK350-12PP Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
