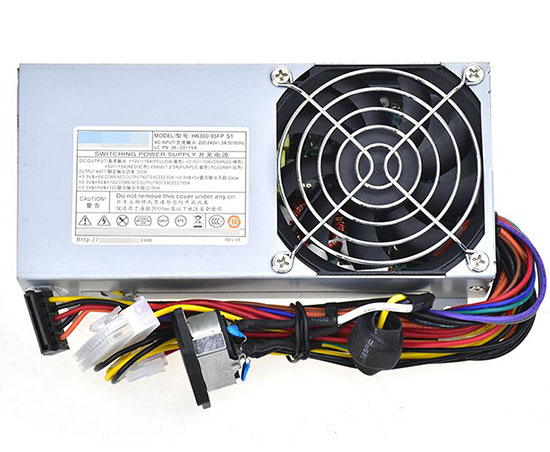

Brand new Lenovo HK300-95FP S1 200W Power Supply

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
PC9024 HK300-95FP 200W Lenovo B500 B505 AIO Computer PSU Power supply
Part Number:PC9024
Model Number:HK300-95FP
AC Input:200- 240V~ ,3A,50/60Hz
DC Output:
+12V==16A(YELLOW)
+ 3.3V==13A(ORANGE)
+5V= 13A(RED)
+5Vsb = 2.5A(PURPLE)
PG(GRAY)
Max Power:200W
Application:For Lenovo B500 B505 All in one Computer PSU

Part No.
PC9024 , HK300-95FP S1

Compatible For lENOVO
For Lenovo B500 B505 B510 W6000I W4600I W2600I 36001766 b50r1

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO HK300-95FP S1 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
