Brand new Lenovo FSP180-50PLV 180w Power Supply

Lenovo Ih55 Ir358 Ir608 I2676 180W PC9029 FSP180-50PLV, enjoys 3 Months Warranty,30-Day Money Back!

Lenovo FSP180-50PLV Power Supply

Brand new Lenovo H310 H315 H320 H330 i2650 i2676 i3550 Desktop Power Supply PSU 180W FSP180-50PLV HK280-86FP PC9029.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: PC9029 FSP180-50PLV
  • Connector
    1x 20PIN 1x SATA 1x SATA
  • Wattage: 180 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Model : FSP180-50PLV
P/N : FSP180-50PLV, 9PA1804200, 36-001754
Type : GSBAGB

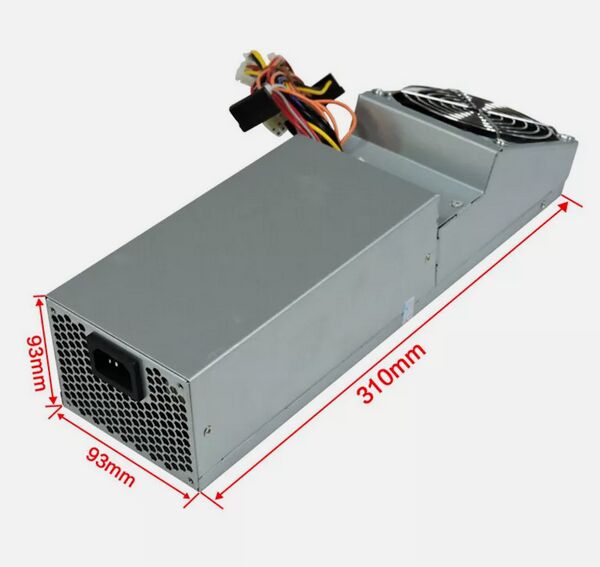

Dimension (L x Wx H) : 32.50 x 9.30 X 7.00
AC Input :AC 200 ~ 240V 50/60HZ
DC Output : 180W
Input Frequency Range : 50-60Hz
Max Output Power : 180W
Connector : 1x 20PIN 1x SATA 1x SATA

Compatible Lenovo Model:H305 H310 H315 H320 H330

Compatible Huntkey Model: Huntkey ih55 ir358 ir608 i1345 i1355 i3550 i4660 i2650 i2676

Compatible Part No: 9PA1804200 36-001754 PC9029

Compatible Model No: FSP180-50PLV HK280-86FP FSP180-50NPL


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO FSP180-50PLV Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
