Home :: Lenovo Power Supply :: Lenovo DPS-690AB A Power Supply

Brand new Lenovo DPS-690AB A 690W Power Supply For Lenovo P720 P520

54Y8980 5P51D77010 690W Server Power Supply For Lenovo P720 P520 DPS-690AB A, enjoys 6 Months Warranty,30-Day Money Back!

Lenovo DPS-690AB A Power Supply

Brand new Lenovo 690W Power Supply (Delta DPS-690AB A) 80 Platinum Plus Switching PSU.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • PART NUMBER : DPS-690AB A
  • FRU: 54Y8980
  • Wattage: 690 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

690W Delta DPS-690AB A Power Supply: Delivers reliable and efficient power for your DELTA server with a maximum capacity of 690 Watts.
Wide Compatibility: Specifically designed for DELTA servers, ensuring seamless compatibility and optimal performance for your server system.
Enhanced Cooling System: Equipped with an advanced cooling system featuring high-quality fans, efficiently dissipating heat and maintaining optimal operating temperatures for the power supply.
With our commitment to quality, each DPS-690AB A undergoes rigorous testing to meet the highest industry standards. Rest assured, your server will receive a reliable and efficient power supply that can withstand even the most demanding workloads.

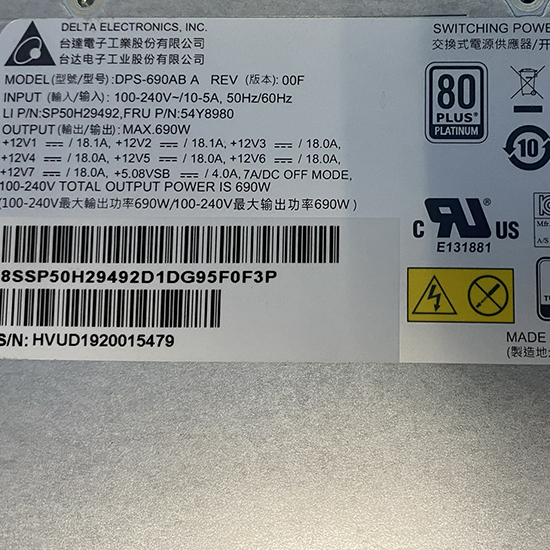

54Y8980 Server Power Supply 690W For Lenovo P720 P520 DPS-690AB A
PN: 54Y8980 5P51D77010
Model: DPS-690AB A
For Lenovo P720 P520
Max Output power: 690W
Input :
100-240V 10-5A 50-60HZ

Output :
+12V1 18.1A
+12V2 18.1A
+12V3 18.0A
+12V4 18.0A
+12V5 18.0A
+12V6 18.0A
+12V7 18.0A
+5.08VSB 4.0A



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO DPS-690AB A Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
