Home :: Lenovo Power Supply :: Lenovo 36200496 Power Supply

Brand new For Lenovo 36200496 180w Power Supply

For Lenovo Thinkcentre E73 180W Power Supply 36200496, enjoys 3 Months Warranty,30-Day Money Back!

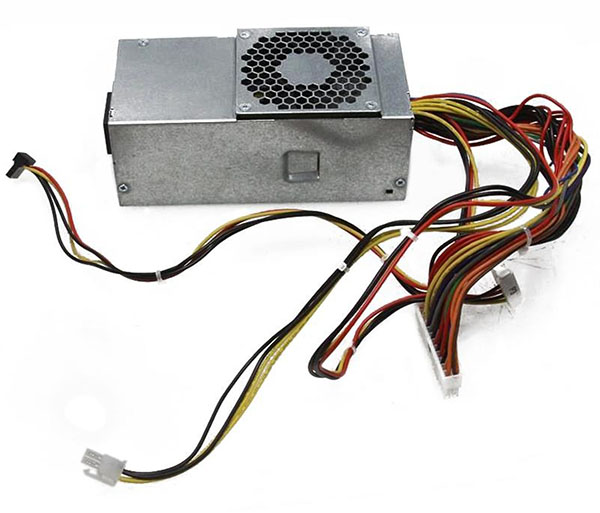

Lenovo 36200496 Power Supply

New 36200496 180W 24-Pin Power Supply For ThinkCentre Edge 72 Desktop.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • FRU: 36200496
  • Compatible for : Thinkcentre E73
  • Wattage: 180 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Lenovo
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
89Y8586 89Y1664 89Y1666 240W For Lenovo A70 M75E M70E M60E SFF Power Supply 36200496
Part Number:54Y8888,89Y8586,89Y1666
Model Number:PS-5181-02
Max Output Power:240W
Compatible Number: 89Y1664
Input:100-127V/6.0A,200-240V/3.0A,50-60HZ
Output:+5.08V/10.0A,+3.3V/16.0A,+12V/14,_12V/0.3A,+5.08Vsb/2.0A
Package : 1 X Power Supply

Part No.
PC9059 36200496 54Y8888

Compatible For lENOVO Desktop:
For Lenovo ThinkCentre Edge71 Edge72 ,Thinkcentre E73


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new LENOVO 36200496 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
