New HP PS-5401-1HA 400W Power Supply For HP Z240 Workstation

PS-5401-1HA HP 400-Watts 12V 6-Pin Power Supply for WorkStation Z240, enjoys 6 Months Warranty,30-Day Money Back!

HP PS-5401-1HA Power Supply

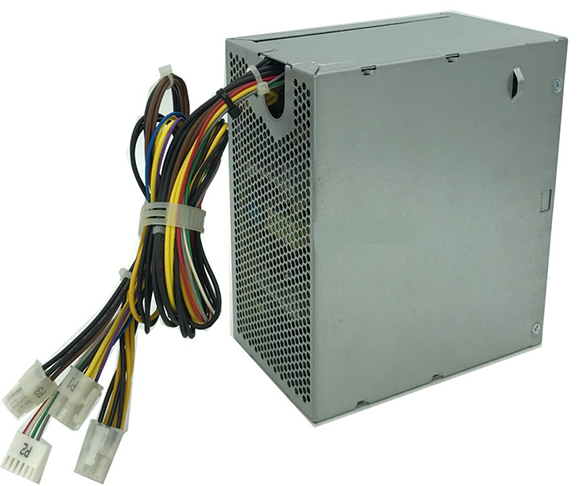

Brand new HP Z240 Workstation 400W Power Supply PSU PCE009 796346-001 796416-001 PS-5401-1HA

  • PART NUMBER : PS-5401-1HA
  • P1 Connector: 6-Pin
  • Wattage: 400W
  • Condition:
    New, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

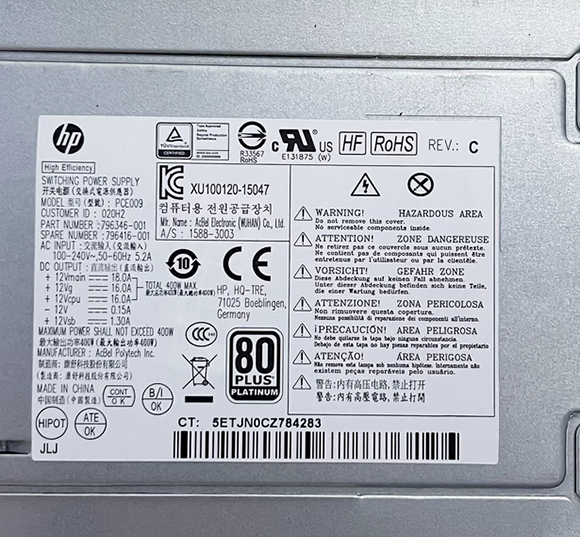

AC Input :
100-240V 5.2A 50-60HZ

DC Output :
+12VMAIN 18A
-12V 0.15A
+12VCPU 16A
+12VSB 1.3A
+12VG 16A

Mpn : 796416-001
Compatible Part Number : 796346-001 796416-001 PS-5401-1HA PCE009
Compatible Product Line : HP Z240 Workstation
Type : Power Supply Unit - PSU

Connectors
(1) 6-Pin Connector
(1) 4-Pin 12V Connector
(1) 6-Pin PCI-E Connector
(1) Floppy Connector



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp PS-5401-1HA Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
