Home :: HP Power Supply :: HP PA-3451-1HA Power Supply

For HP PA-3451-1HA 450W Power Supply

For HP Z2 G5 / G8 SFF 450W PC Switching Power Supply M09029-001 PA-3451-1HA, enjoys 6 Months Warranty,30-Day Money Back!

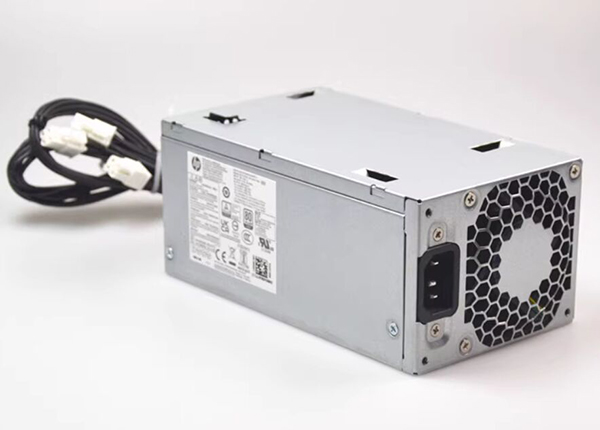

HP PA-3451-1HA Power Supply

For HP Z2 G5 / G8 SFF 450W Switching Power Supply (M09029-001 PA-3451-1HA).This HP PA-3451-1HA 450W power supply is designed for use with HP Z2 G5 and G8 SFF (Small Form Factor) workstations..All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Numbers: L80890-001, PA-3451-1HA
  • Form Factor: Small Form Factor (SFF)
  • Wattage: 450W
  • Condition:
    New, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: New, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

Optimize your HP Z2 G5 Small Form Factor workstation's performance with the HP 450W Power Supply, engineered for stability and efficiency. This power supply delivers a robust 450W power rating, ensuring your system runs smoothly under heavy workloads and extended usage.
Max Power: 450W
Dimensions: 95mm x 72mm x 165mm

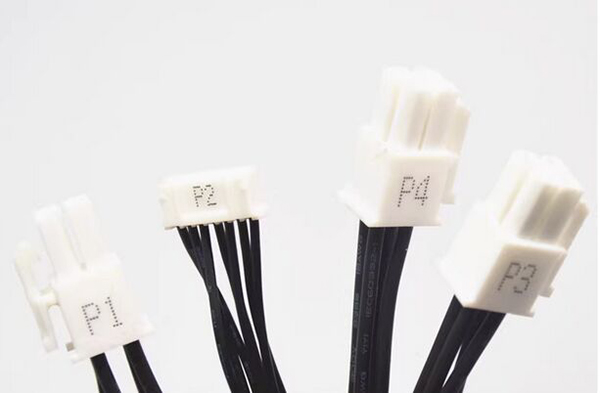

Connectors
(3) 4-Pin Connector (14") (25") (25.5")
(1) 7-Pin Inline (5")

Part Number: L80890-001,M09029-001
Power: 450W
Model : PA-3451-1HA
Compatible for Z2 G5 SFF



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp PA-3451-1HA Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
