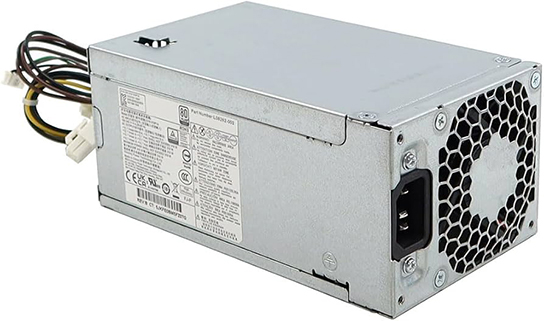

Brand new HP D19-310P1A 310W Power Supply for HP Pavilion 595-P 790 690 590 ENVY 795

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
310W Power Supply for HP Pavilion 595-P 790 690 590 ENVY 795 MAX. OUTPUT POWER: 310W

AC INPUT
100-240V~/4.0A (50-60Hz)

DC OUTPUT
+12.1Vmain = 16A
+12.1Vcpu = 16A

Dimensions
95mm x 73mm x 164mm

Connectors
(1) 7-Pin Inline Connector (5") (P2)
(2) +12V 4-Pin Power Connector (13.5 P1) (21" P3)

Replaceability with the following models:
D19-310P1A L08262-002 PA-2251-5 PCG007 PA-3401-1HA

Compatible Models:
HP 400 480 G4 600 680 G3 800 880 G3 / HP Pavilion 595-P 790 690 590 ENVY 795

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp D19-310P1A Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
