For HP 851381-001 465W Power Supply

For HP Z4 G4 Workstation Tower Power Supply PSU 465W DPS-465AB-3 A 851381-001, enjoys 6 Months Warranty,30-Day Money Back!

HP 851381-001 Power Supply

851381-001 HP Z4 G4 465W Model #:DPS-465AB-3 A Power Supply Unit PSU.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: 851381-001
  • Form Factor:Hot Swap Psu
  • Wattage: 465W
  • Condition:
    new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

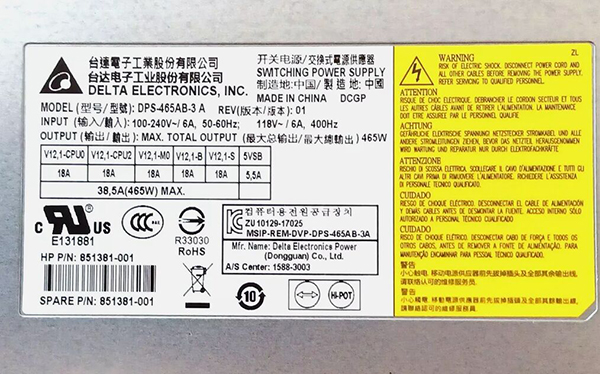

Model:DPS-465AB-3A
Type :Server
Form Factor:Hot Swap Psu
AC Output :100-240V
DC Output :
V12,1-CPU0 -18A
V12,1-CPU2 -18A
V12,1-M0 -18A
V12,1-B -18A
V12,1-S -18A
5VSB- 5,5A


Input Frequency Range: 50-60Hz
Max Output Power : 38, 5A(465W)
Output Capacity : 465W

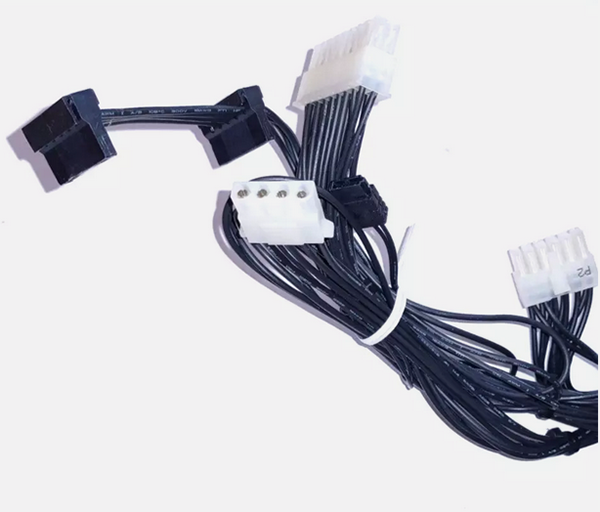

Connector :
1x 18 Pin ATX Power Connector
1x 12 Pin Power Connector
1x Molex Power Connector
2x SATA Power Connectors
1x Slimline SATA Power Connector

Compatible Part No: 851381-001 851381-002 851381-003

Compatible Model Number: DPS-465AB-3A

Compatible Models HP Z4 G4 Workstation



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp 851381-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
