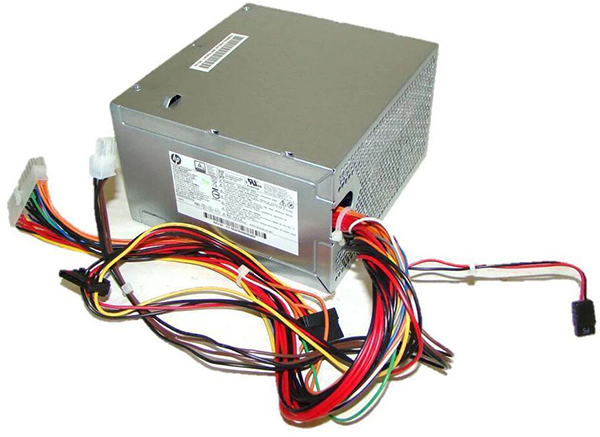

Brand new HP 759767-001 180W Power Supply For HP Pavilion 510 550 ProDesk DT

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
MAX. OUTPUT POWER: 180W

AC INPUT
100-240V ~ , 50-60Hz , 6A

DC OUTPUT
+5.08V = 10A
+3.3V = 12A
+12Va = 7A
+12Vb = 10A
+5.08Vsb = 1.5A
-12V = 0.3A

Dimensions :
150mm x 86mm x 140mm
Connectors
(1) 24-Pin ATX Connector (15.5")
(1) +12V 4-Pin Power Connector (16")
(1) mini-SATA Connector (5")
(2) SATA Connectors (12" & 19" on the same cable)

MPN: 759049-001,759767-001,848053-002
Manufacturer: For HP Power Supply
MPN: D13-180N1A

Compatible Models:
HP DESKTOP 251-130XT， HP PAV 510-P030 DT PC ALL， HP PAVILION DESKTOP 550-020 ， HP PAVILION DESKTOP PC 550-121， HP Pav 550-102a DT PC AUST， HP DESKTOP 251-130XT REFURB ， HP PAV 510-P079 DT PC， HP PAVILION DESKTOP 550-026， HP PAVILION DESKTOP PC 550-126 ， HP Pav 550-103a DT PC AUST， HP DESKTOP CTO 251-030XT ， HP PAV 510-P089 DT PC ， HP PAVILION DESKTOP 550-029 ， HP PAVILION DESKTOP PC 550-177C ， HP Pav 550-103la DT PC LTNA， HP DESKTOP CTO 251-030XT REFURB ， HP PAV 510-P109 DT PC ALL HP PAVILION DESKTOP 550-030 ， HP PAVILION DESKTOP PC 550-179 ， HP Pav 550-105a DT PC AUST， HP ENVY 750-287C DESKTOP PC ， HP PAV 510-P114 DT PC ， HP PAVILION DESKTOP 550-040 ， HP Pav 510-p002la DT PC CHILE ， HP Pav 550-106a DT PC AUST， HP Pavilion 510-P Series ， HP PAV 510-P120G， HP PAVILION DESKTOP 550-044 ， HP Pav 510-p003la DT PC CHILE ， HP Pav 550-107a DT PC AUST， HP Pavilion 510-P009 ， HP PAV 510-P127C DT PC ， HP PAVILION DESKTOP 550-109 ，HP Pav 510-p004la DT PC ARGNTINA ， HP Pav 550-108a DT PC AUST， HP Pavilion 510-P010 ， HP PAV 510-P136 ， HP PAVILION DESKTOP 550-112 ， HP Pav 510-p005la DT PC ARGNTINA ， HP Pav 550-110a DT PC AUST， HP Pavilion 510-P020 ， HP PAV 510-P137CB DT PC ， HP PAVILION DESKTOP 550-120 ，HP Pav 510-p006la DT PC ARGNTINA ， HP Pav 550-115a DT PC AUST， HP Pavilion 510-P020T CTO ， HP PAV 550-110 DT ， HP PAVILION DESKTOP 550-129 ， HP Pav 510-p007la DT PC ARGNTINA ， HP Pav 550-132 DT PC US， HP Pavilion 510-P021 ， HP PAV 550-310 DT PC US ， HP PAVILION DESKTOP 550-130 ，HP Pav 510-p010la DT PC CHILE ， HP Pav 550-159c DT PC CAN/ENG， HP Pavilion 510-P030 ， HP PAVILION 510-P020T DT PC US ， HP PAVILION DESKTOP 550-140 ， HP Pav 510-p011la DT PC LTNA ， HP Pav 550-163w DT PC US， HP Pavilion 510-P030XT CTO ， HP PAVILION 510-P030XT DT PC US ， HP PAVILION DESKTOP 550-149 ， HP Pav 510-p012la DT PC CHILE ， HP Pav 550-169c DT PC CAN/ENG， HP Pavilion 510-P109 ， HP PAVILION 510-P040QE DT PC US ， HP PAVILION DESKTOP 550-150 ， HP Pav 510-p131jp DT PC JPN2 ， HP Pav 550-175hk DT PC HK， HP PAV 510-P009 DT PC ， HP PAVILION 510-P050ST DT PC US ， HP PAVILION DESKTOP 550-153W ， HP Pav 510-p151jp DT PC JPN2 ， HP Pav 550-270 DT PC US， HP PAV 510-P010 DT PC US ， HP PAVILION 510-P117C ， HP PAVILION DESKTOP 550-172 ，HP Pav 510-p171jp DT PC JPN2 ， HP SLIMLINE DESKTOP 450-A30， HP PAV 510-P017C DT PC ALL， HP PAVILION 550-339 ， HP PAVILION DESKTOP 550-182 ，HP Pav 550-001la DT PC LTNA ， HP SLIMLINE DESKTOP 450-A34LD， HP PAV 510-P020 DT PC， HP PAVILION DESKTOP 550-009 ， HP PAVILION DESKTOP 550-192 ，HP Pav 550-020jp DT PC JPN2 ， PSU 180W Reg Crasto-S， HP PAV 510-P021 DT PC ALL ， HP PAVILION DESKTOP 550-010 ， HP PAVILION DESKTOP 550-027C ，HP Pav 550-100la DT PC LTNA ， HP Prodesk 400 Series， HP PAV 510-P024 DT， HP PAVILION DESKTOP 550-016 ， HP PAVILION DESKTOP 550-047C ， HP Pav 550-101a DT PC AUST， HP Prodesk 570 Series， HP PAV 510-P026 DT PC ALL ， HP PAVILION DESKTOP 550-019 ， HP PAVILION DESKTOP 550-127C ， HP Pav 550-101la DT PC LTNA

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp 759767-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
