Home :: HP Power Supply :: HP 667892-001 Power Supply

Brand new HP 667892-001 300W Power Supply For HP Pro 3500 3515 3545

Power supply HP DPS-300AB-72 A / 667892-001 - 300W, enjoys 3 Months Warranty,30-Day Money Back!

HP 667892-001 Power Supply

Brand new 667892-001 for HP Desktop power supply 667892-003 715184-001.

  • Part Number : 667892-001 715184-001
  • Model Number : DPS-300AB-72 A
  • Wattage: 300W
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

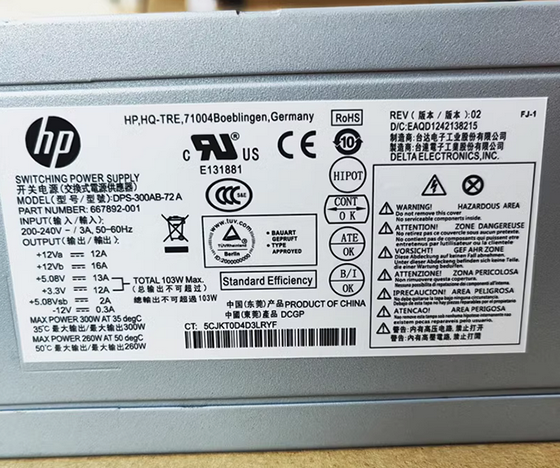

667892-001 HP 300-Watts ATX Power Supply for Pro 3500 MicroTower System
Input :
200-240V 3A 50-60HZ

Output :
+12VA 12A
+12VB 16A
+5.08V 13V
+5.08VSB 2A
-12V 0.3A

Part Number : 667892-003 ,715184-001 ,656721-001 ,633190-001 , 667892-001
Model Number : DPS-300AB-72 A

Model Compatibility:
Pro 3500
Pro 3515
Pro 3545



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp 667892-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
