Brand new HP 632911-001 600W Workstation Power Supply For HP Z420 Workstation

623193-001, 632911-001 600W Workstation Power Supply For HP Z420 DPS-600UB A, enjoys 6 Months Warranty,30-Day Money Back!

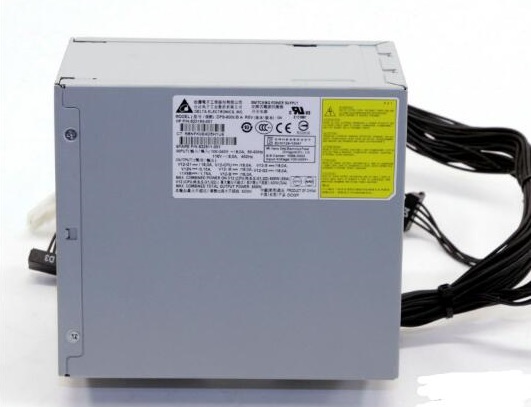

HP 632911-001 Power Supply

Brand new For HP Z420 Workstation DPS-600UB A 600W Power Supply 623193-001/003 632911-001.

  • Part Number 623193-001,632911-001
  • Model Number DPS-600UB A
  • Wattage: 600W
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HP
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Max Power: 600W
Replacement Part Numbers: 623193-001, 632911-001, DPS-600UB A

AC INPUT
100-240V ~/8,0A, 50/60Hz
118V~/8,0A, 400Hz

DC OUTPUT
V12-G1=/ 18,0A, V12-CPU= /18,0A, V12-S=/18,0A,
V12N=0,15A, V12-M= /18,0A, V12-G2=18,0A,
11VSB=/ 1,75A, V12-B= /18,0A,

Dimensions
150mm x 98mm x 168mm

Connectors
(1) 18-Pin Connector (P1) (18")
(1) 8-Pin Connector (P2) (4")
(2) 6-Pin Connector (G1 22") (G2 22")
(1) IDE / PATA Connector (D7 16.5")
(6) SATA Connector (D1 21") (D2 23") (D3 25") All On The Same Cable
SATA Connector (D4 7") (D5 10.5") (D6 14") All On The Same Cable

Compatible Models (Partial List / Not Limited To)
HP Z420 Workstation



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new hp 632911-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
