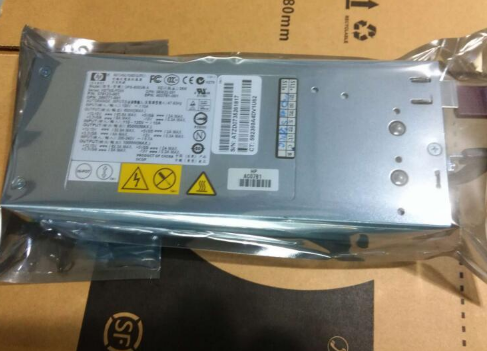

Brand new HP 403781-001 1000Watt PSU For Proliant ML350 ML370 DL380 DL385P.
Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

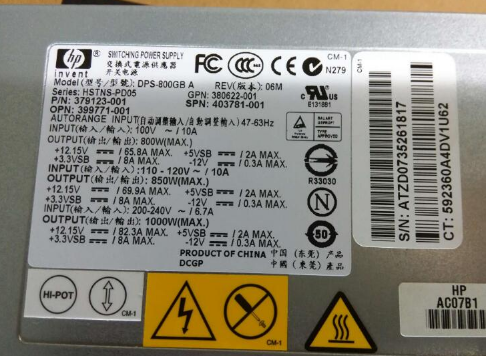

MAX. OUTPUT POWER: 1000W
AC INPUT
200-240V ~ /6.7A
DC OUTPUT
+12.15V == /82.3A MAX.
+5VSB ==/2A MAX
+3.3VSB ==/8A MAX
-12V ==/0.3A MAX
Dimensions
86mm x 33mm x 218mm
Connectors
(1) Hot-Pluggable
HP Part Number(s)
Option Part# 399771-B21 (IEC)
Option Part# 399771-001 (NEMA)
Spare Part# 403781-001
Assembly Part# 379123-001
Assembly Part# 379124-001
Assembly Part# 380622-001
Model# DPS-800GB A
Compatible Models
HPE ProLiant DL360 G5 Server
HPE ProLiant DL380 G5 Server
HPE ProLiant DL380 G5 Storage Server
HPE ProLiant DL380 G5
HPE ProLiant DL385 G2 Server
HPE ProLiant DL385 G5 Carrier-grade Server
HPE ProLiant DL385 G5 Server
HPE ProLiant DL385 Server
HPE ProLiant DL580 G5 Server
HPE ProLiant High Availability Storage Server
HPE ProLiant ML350 G5 Server
HPE ProLiant ML350 G5 Storage Server
HPE ProLiant ML370 G5 Server
HPE StorageWorks 4400 Scalable NAS File Services
HPE StorageWorks 600 All-in-One Storage System
HPE StorageWorks 6000 Virtual Library System
HPE StorageWorks Enterprise Virtual Array File Services
HPE Superdome x86 SMS Windows 2003 Server
1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.
2. Install the new hp 403781-001 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)
3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
