New FSP SPI-300G 300W Power Supply

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

This 300 watt AT style power supply is typically found in older computer systems, or most systems where a physical on/off switch is necessary. Control systems at plants and refineries, kiosks at shopping malls, and gaming arcades are where you will find AT power supplies powering all of these devices. This 300 watt model SPI-300G replaces pretty much any AT power supply, adding extra years of service by providing power to your electronic platform.

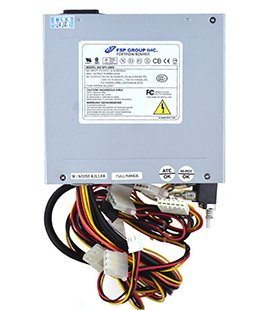

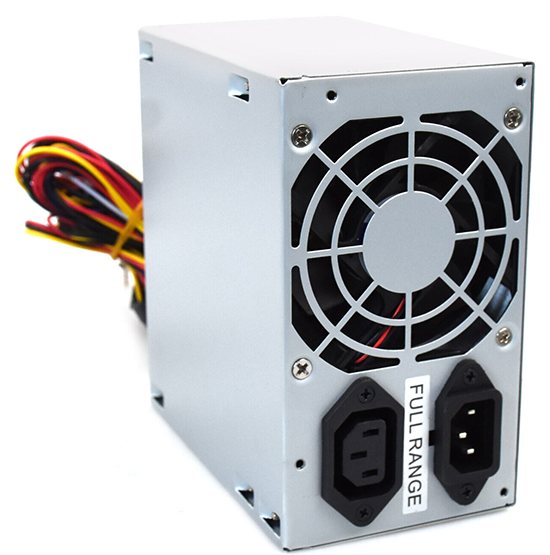

Model: FSP SPI-300G
AT Form factor
5.9" Wide X 3.4" Tall X 5.5" Deep

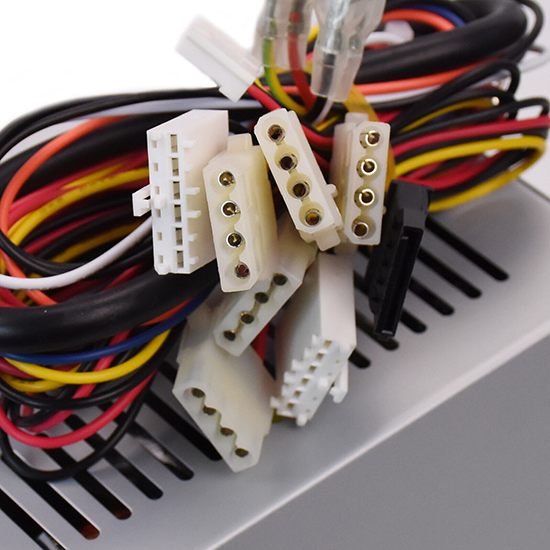

One P8 Connector
One P9 Connector
Four Molex Connectors
Two Floppy Connectors
Applicable machine: industrial control machine

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new FSP SPI-300G Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
