Brand new FSP300-60PLN FSP Group 300W Power Supply

FSP300-60PLN 300W Power Supply with 6 pin AUX Connector, enjoys 6 Months Warranty,30-Day Money Back!

FSP FSP300-60PLN Power Supply

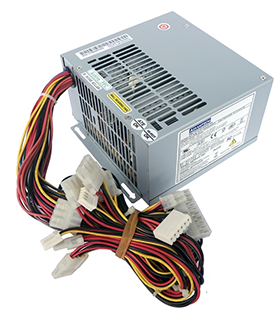

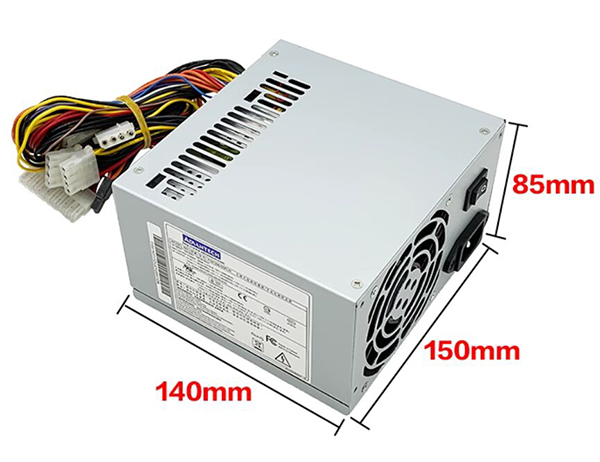

Brand new FSP Group FSP300-60PLN 300W TFX12V 80 PLUS Certified Active PFC Power Supply.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: FSP300-60PLN
  • 80 PLUS Certified
  • Wattage: 300 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

FSP300-60PLN FSP Group 300W POWER SUPPLY

MPN : FSP300-60PLN
300 Watts
Voltage:90 ~ 264 VAC, full range
Frequency:47Hz ~ 63Hz
Input Current:6A (RMS) for 115 VAC;
3A (RMS) for 230 VAC
Inrush Current:60A max for 115 VAC
(+25° C cold start) 90A max for 230 VAC

Replacement power supply 300w for FSP FSP300-60GRE FSP300-60PLN FSP300-60THN.

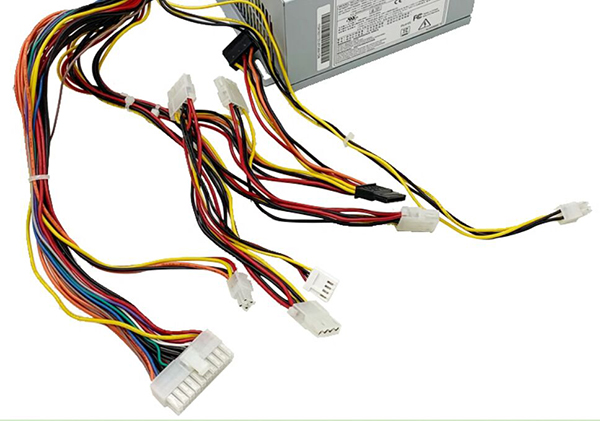

Connectors:
• One (1) 20+4-Pin ATX connector
• One (1) 4-Pin ATX12V connector
• Two (2) Peripheral power connector
• One (1) Floppy drive connector
• Three (3) SATA power connector


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new FSP FSP300-60PLN Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
