New Delta DPS-300AB-43B 300W Power Supply PSU.

For Delta DPS-300AB-43B high efficiency MATX 300W SFX mini power supply , enjoys 6 Months Warranty,30-Day Money Back!

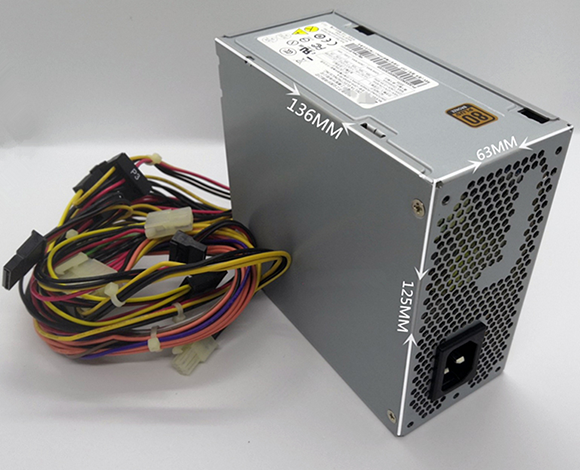

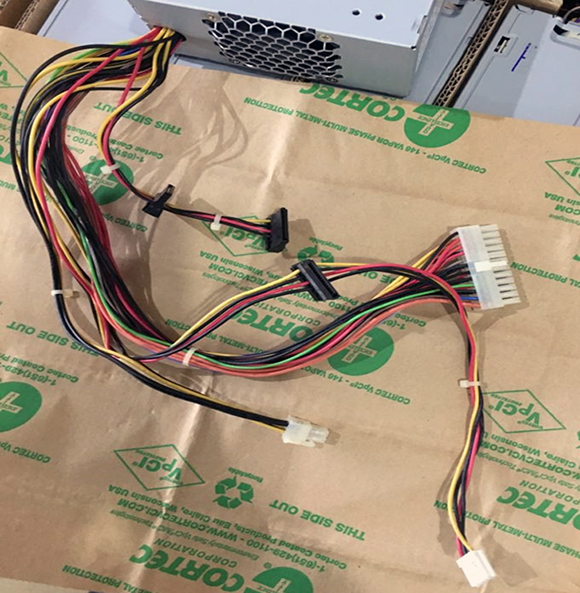

Delta DPS-300AB-43B Power Supply

Brand new Delta DPS-300AB-43B Power Supply.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: DPS-300AB-43B
  • Interface Type： 24Pin
  • Wattage: 300 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Delta
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

Output： Universa
Model Number：DPS-300AB-58A DPS-300AB-57A HP-D3008E0 DPS-300AB-43B
Package： Yes
Application： Desktop
Input Voltage： 100-240V
Interface Type： 24Pin
PFC Type： Active
CPU Power Connector： 4 pin
Modular： Non-Modular
Plug Type： EU plug
Number of SATA Ports： 3
Compatible: Acer Veriton S2610G, S2611G
Acer Veriton S4610G, S4620G, S480, S480G, S490G
Acer Veriton S6610G, S6620G, S670G, S680G
Gateway DT10G

Input :
100-127V 7A 60HZ
220V 240V 3.5A 50HZ

Output :
+3.3V 16A
+5V 16A
+12V1 10A
+12V2 16A
-12V 0.3A
+5VSB 2A



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new delta DPS-300AB-43B Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
