Brand new VX372 Dell 315 Watts Power Supply For Dell OptiPlex 3020 9020 XE2 T1700

For Dell OptiPlex 3020 9020 T1700 315W Power Supply VX372, enjoys 6 Months Warranty,30-Day Money Back!

Dell VX372 Power Supply

Brand new VX372 - Dell 315-Watts 100-240V 4.4A ATX Power Supply .All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: VX372
  • Form Factor: ATX
  • Wattage: 315 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

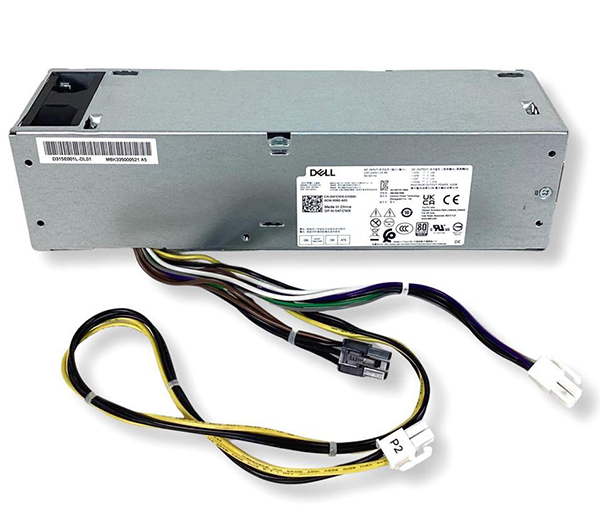

315W Power Supply for Dell Optiplex XE2 9020 7020 3020 SFF
Part Number: 4FCWX
MPN: 4FCWX, VX372, H315ES-00 D315ES-00
Type: Desktop Power Supply
Model: H315ES-00
Compatible Brand: For Dell
Compatible Product Line: For Dell Optiplex
Wattage: 315 watts
Input Voltage: 100-240V AC
Input Current: 4.4A
Frequency: 50-60Hz
Form Factor: ATX

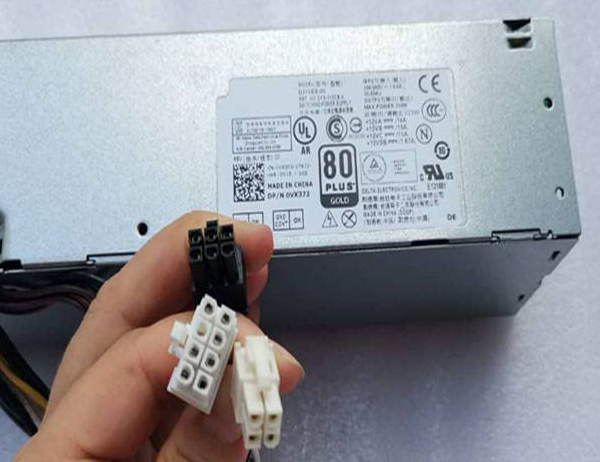

Connectors
P1 - 8-Pin Connector ( 8" )
P2 - 6-Pin Connector ( 4.5" )
P3 - 4-Pin 12V Connector ( 20" )
Compatible Models For Dell Optiplex XE2 9020 7020 3020 SFF



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell VX372 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
