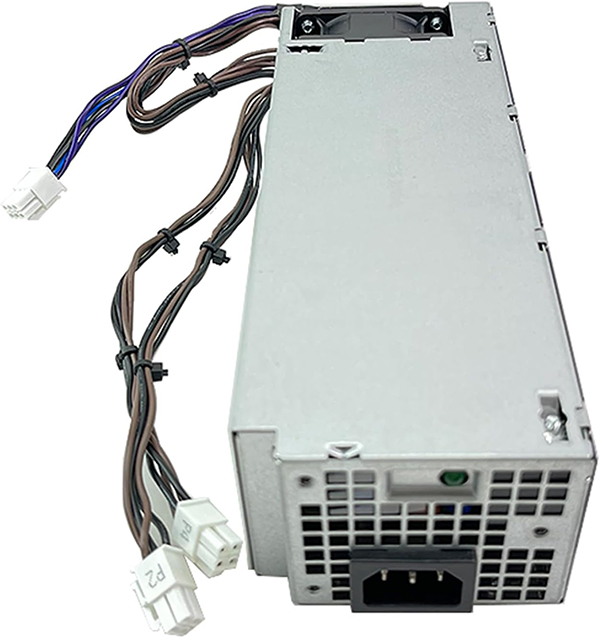

Brand new Dell T5K83 260W Power Supply for Dell Optiplex 7080 MT

L260EBM-01 T5K83 PA-2261-3DB 0J17YJ 260w dell optiplex 7080 mt, enjoys 6 Months Warranty,30-Day Money Back!

Dell L260EBM-01 Power Supply

Brand new T5K83 J17YJ 0J17YJ 260W Power Supply For Dell 7080MT 7070 7060 3050M L260EBM-01.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: J17YJ,0J17YJ
  • MPN: T5K83
  • Wattage: 260 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
L260EBM-01 J17YJ PA-2261-3DB 0J17YJ T5K83 260W

Dell optiplex 7080 7070 7060 3050 mt
AC Input :
100V-240V 50-60HZ 4.2A

DC Output :
+12VA1DC 16.5A
+12VA2DC 16.5A
+12VBDC 18A

standby
+12VA1DC 1.5A
+12VA2DC.5A
+12VBDC 2.5A
260W
CONNECTORS:
P1 - 6-Pin Connector
P2 - 4-Pin 12V Connector
P3 - 4-Pin 12V Connector
L260EBM-01 J17YJ PA-2261-3DB 0J17YJ HU260EBM-00 T5K83 H260EBM-01 WYHR8

Compatible Models
Dell optiplex 7080 7070 7060 3050 mt



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell T5K83 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
