Brand new N875E-00 875W Power Supply For Dell T5400 T5500

N875E-00 - 875W Power Supply for Dell Alienware Aurora R3 R4 ALX R3 R4 Area 51 Precision T5500, enjoys 6 Months Warranty,30-Day Money Back!

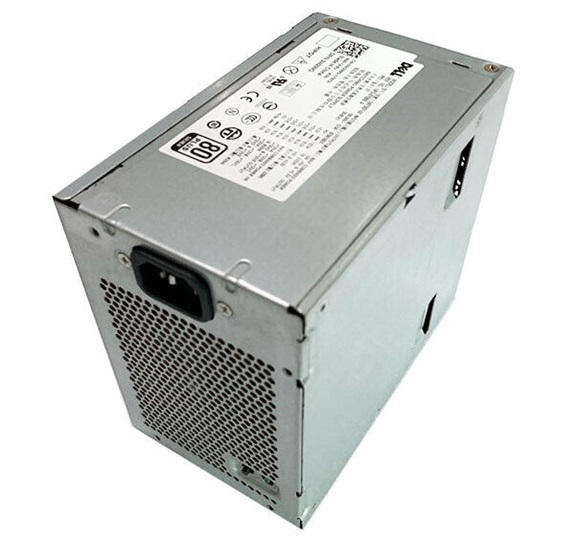

Dell N875E-00 Power Supply

Brand new Dell Precision T5500 T5400 J556T PSU N8758F-00 Power Supply Unit W299G 875W. All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Model: N875E-00
  • Main Connector: Uses harness R166H (not included).
  • Wattage: 635 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Works with Dell R166H - Wiring Harness - not included.
Max Power: 875W
AC Input: 50-60Hz, 100-240V ~ 12.5A
DC Output:
+5V / 32A, +3.3V / 30A
+12VA / 18A, 12VB / 18A
+12VC / 18A, 12VD / 18A
+12VE / 18A
-12V / 0.5A
Dimensions:
153mm x 100mm x 165mm
Connectors / Harness:
Uses harness Dell R166H - Wiring Harness (not included)

Compatible Part Numbers: W299G
Compatible Model Numbers: NPS-875BB A, H875P-00 , N875E-00 , H875EF-00, N875EF-00, H875E-00

Compatible Models:
Alienware Area 51
Alienware ALX R3
Alienware ALX R4
Alienware Aurora R3
Alienware Aurora R4
Precision Workstation T5500


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell N875E-00 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
