Home :: Dell Power Supply :: Dell N305P-06 Power Supply

N305P-06 Dell 305 Watts Power Supply For Dell Optiplex 360 380 580 745 755 760 780 960 MT Mini Tower

For Dell OptiPlex 3020 9020 T1700 305W Power Supply N305P-06, enjoys 6 Months Warranty,30-Day Money Back!

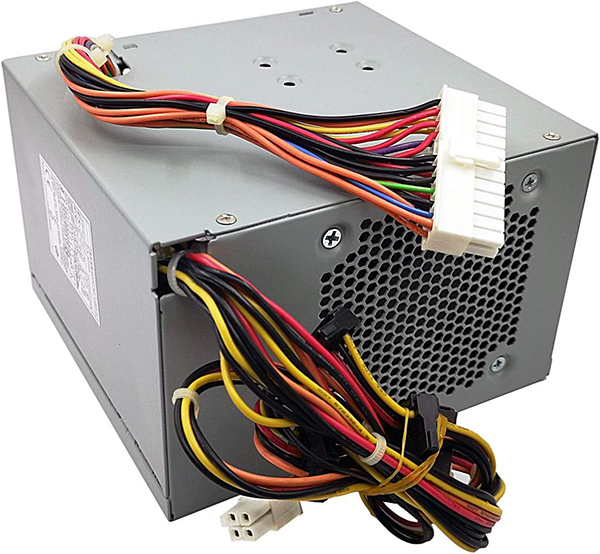

Dell N305P-06 Power Supply

For Dell OptiPlex 305W Power Supply NH493 N305P-06 .All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: N305P-06
  • Form Factor: ATX
  • Wattage: 305 WATT
  • Condition:
    new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
MAX. OUTPUT POWER: 305W

AC INPUT
100-120V~ /9.0A 50/60Hz
200-240V~ /4.5A


DC OUTPUT
+5V ==/ 22.0A, -12V ==/ 1.0A,
+12VA ==/ 18.0A, +3.3V ==/17.0A,
+12VB ==/ 18.0A, +5VFP ==/ 4.0A,

Dimensions
150mm x 98mm x 140mm

Connectors
(1) 24-Pin ATX Connector (P1 7")
(1) 12V ATX Connector (P2 8")
(1) Floppy Connector (P7 5.5")
(4) SATA Connectors (P3 16") (P5 17.5") On The Same Cable (P8 8") (P9 11") On The Same Cable

Compatible Model Number: L305P-01 PS-6311-5DF-LF N305P-06 F305P-00，L305P-03 H305P-02

Compatible Part Number: NH493 MH595 XK215 P192M JH994 C248C PW114 MK9GY X8129

Compatible Models (not limited to)
Dell Dimension E310
Dell Dimension E510
Dell Dimension E520
Dell Dimension E521
Dell OptiPlex 320 Mini Tower (MT)
Dell OptiPlex 330 Mini Tower (MT)
Dell OptiPlex 580 Mini Tower (MT)
Dell OptiPlex 740 Mini Tower (MT)
Dell OptiPlex 745 Mini Tower (MT)
Dell OptiPlex 755 Mini Tower (MT)
Dell OptiPlex 760 Mini Tower (MT)
Dell OptiPlex 780 Mini Tower (MT)
Dell OptiPlex 960 Mini Tower (MT)


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell N305P-06 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
