Dell Optiplex 3020 / 9020 SFF Small Form Factor 255 Watt Power Supply - HCWV2

Dell Optiplex 3020 7020 9020 SFF PSU 255W Power Supply HCWV2 0HCWV2 CN-0HCWV2 H255ES-01, enjoys 3 Months Warranty,30-Day Money Back!

Dell HCWV2 Power Supply

Dell OEM Optiplex 3020 / 9020 SFF Small Form Factor 255 Watt Power Supply.

  • Part Number: HCWV2
  • Wattage: 255 WATT

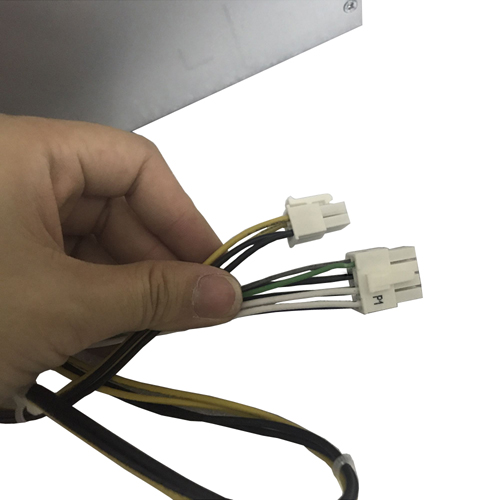

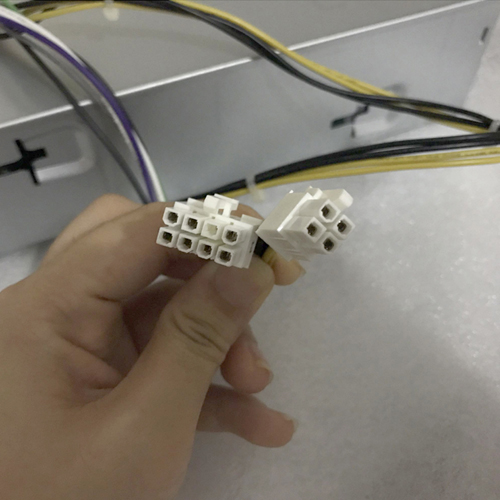

  • Connectors:
    1 - 4 pin ATX +12v Power
    1 - 8 Pin EPS +12V Power
Was : AU$95.96
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand New
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Part Numbers:
HCWV2,H255ES-01,D255E002L

Compatible For Dell Desktop:
- Optiplex 3020 Small Form Factor
- Optiplex 7020 Small Form Factor
- Optiplex 9020 Small Form Factor

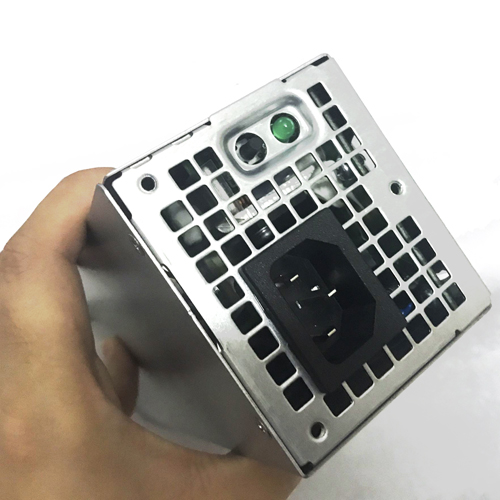

Product Picture




HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
