Brand new Dell H290AM-00 290W Power Supply for Dell Optiplex 3020 7020 9020 MT PowerEdge T20 Precision T1700

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
MAX. OUTPUT POWER: 290W

AC INPUT
100-240V ~/5.4A, 50-60Hz

DC OUTPUT
+12VA - 14A
+12VB - 16A
+12VSB - 1.67A

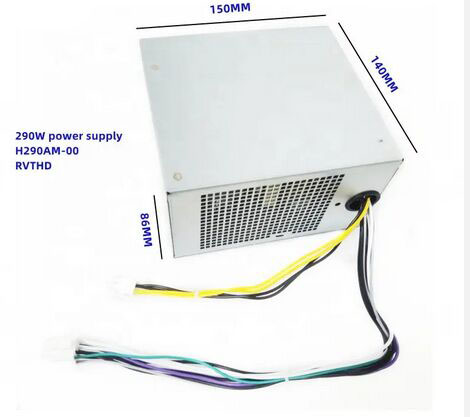

Dimensions
150mm x 86mm x 140mm

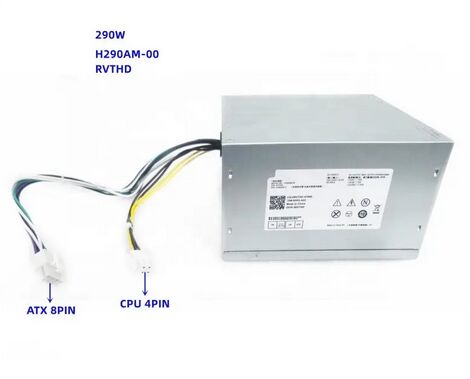

Connectors
(1) 8-Pin P1 Connector (P1 11")
(1) 4-Pin P2 12V Connector (P2 6.5")

Part Number:
D290A001L, HYV3H, RVTHD, H290AM-00

Compatible Models
Dell Optiplex 3020 MT, Dell Optiplex 7020 MT, Dell Optiplex 9020 MT, Dell Precision T1700, Dell PowerEdge T20

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell D180EBS-00 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
