DPS-460DB-15A - 460W Power Supply Compatible with XPS 8910.

For DELL XPS 8910 8920 8300 8900 R5 DPS-460DB-15 D460AM-03 460W PSU Power Supply, enjoys 3 Months Warranty,30-Day Money Back!

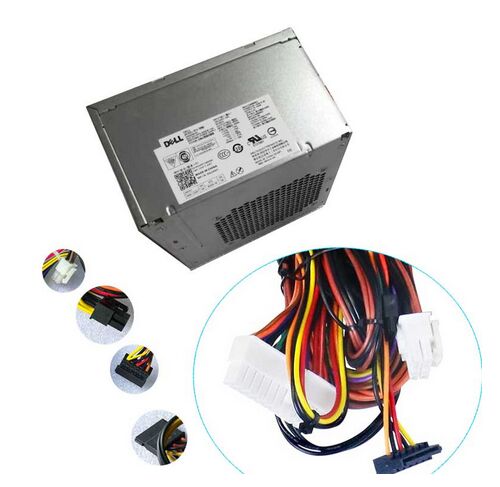

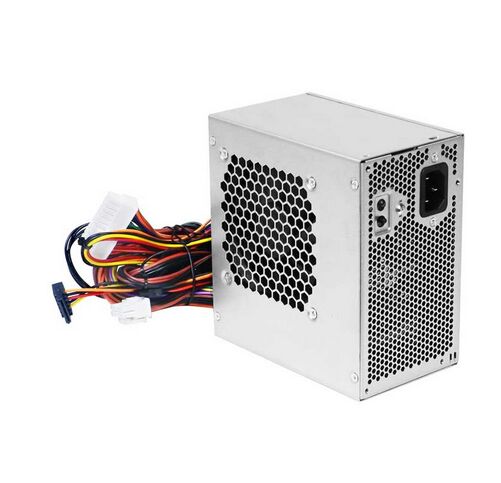

Dell DPS-460DB-15 Power Supply

Brand new Dell DPS-460DB-15 Power Supply.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: DPS-460DB-15
  • Max Output Power: 460W. AC Input(50-60Hz): 100-240V~5.0A.
  • Wattage: 460 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

460W Power Supply for XPS 8910 + Micro SATA + 8-Pin (6+2) + Extended 12V Cable

Max Power: 460W
Input: 100-240V~5.0A, 50/60Hz
Output: 12.0VA 18.0A, 12.0VB 16.0A, 12.0VC 8.0A, 3.3V 17A, 5V 25A , 5V aux 3.0A

Connectors
(1) 24-Pin ATX Connector (11.5")
(1) 4-Pin 12V Connector (20")
(1) 6-Pin PCI-E Connector (11" on same cable as 8-pin 6+2)
(1) Mini SATA Optical Connector (P14) (18" on same as dual sata 7" and 11" cable)
(4) SATA Connectors (7" & 11" on same cable as mini sata) (18.5" & 24.5" on same cable)
(1) 8-Pin (6+2) (14" on same cable as 6-Pin PCI-E Connector)

Model: D460AM-01 / D460AM-02 / D460AM-03 / AC460AM-01 / AC460AD-01 / HU460AD-01 / HU460AM-00 / PC9004 / DPS-460DB-4 A / DPS-460DB-15

DP/N: FVGCW / HMCPC / GJXN1 / DM1RW / RH8P5 / 6GPR9 / 6GXM0 / 7YC7C / DGX9R / WC1T4

Compatible Models Dell Inspiron 560 Mini Tower (MT)
Dell XPS 7100
Dell XPS 8300
Dell XPS 8500
Dell XPS 8700
Dell XPS 8900
Dell XPS 8910
Dell XPS 8920



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell DPS-460DB-15 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
