Brand new D500EPS-01 Dell 500 Watts Power Supply PSU For Dell 3710 3910 T3660 5000 3000 7000MT

500W Power Supply D500EPS-01 0VFFKJ VFFKJ for Dell T3660 XPS 8950 3910 7000 , enjoys 6 Months Warranty,30-Day Money Back!

Dell D500EPS-01 Power Supply

Brand new 500W D500EPS-01 Power Supply For Precision 3660 Inspiron 3910 XPS 8950 OptiPlex 7000 Tower.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: D500EPS-01
  • Main Connector: 8-Pin
  • Wattage: 500 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

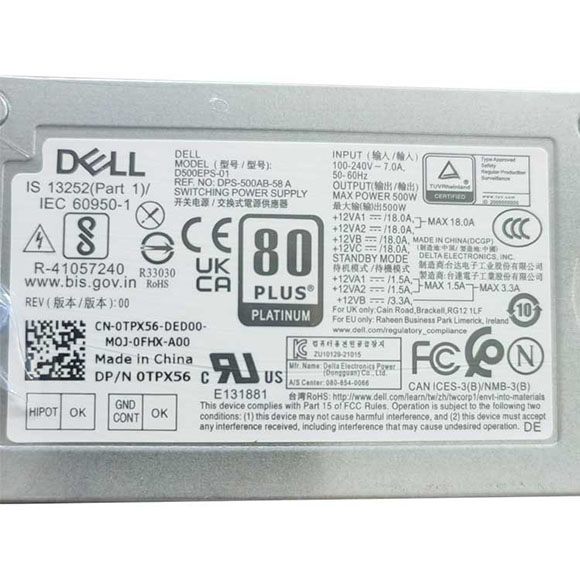

Max Power: 500W
Certification: 80 Plus Platinum
AC INPUT: 100-240 V~/7 A 50/60Hz
DC OUTPUT
+12 VA1 ==/18A
+12 VA2 ==/18A
+12 VB ==/18A
+12 VC==/18A
Dimensions: 120mm x 63mm x 185mm
Connectors
(1) 8-Pin Connector (ATX SYS) (12")
(1) 6-Pin Connector (GFX2) (13.5") On Same Cable As GFX1
(1) 6+2 Pin Connector (GFX1) (17") On Same Cable As GFX2
(2) +12V 4-Pin Power Connector (ATX CPU1) (25") ( ATX CPU2) (25")

Model No:
HU500EPS-00, L500EPS-01, D500EPS-01, HU500EPS-01,DPS-500AB-58A

Part number :
VFFKJ, DYW3N, CW96Y, RJVH9, C20GG

Compatible For Dell Desktop:
Inspiron 3910, OptiPlex 7000 Tower, Precision 3660, XPS 8950



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell D500EPS-01 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
