Home :: Dell Power Supply :: Dell D460E001P Power Supply

Brand new Dell D460E001P 460W Power Supply for Dell Optiplex 5060 7060 7070

460W PSU Dell D460E001P Power Supply For Dell 3050 5050 7050 7070 7080, enjoys 6 Months Warranty,30-Day Money Back!

Dell D460E001P Power Supply

Brand New D460E001P 4FWF7 460W Power Supply Compatible with Dell Optiplex 3040 3046 3050 5050 5060 5090 7050 7060 7070 XPS 8940 MT. All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Model: D460E001P
  • Main Connector: 6-Pin
  • Wattage: 460 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
460W Power Supply Source For OptiPlex 3046 3040 3050 5050 5070 7070 7050 7060 MT 460W PSU L460EBM-00 H460EBM-00 D460E001P

MAX. OUTPUT POWER: 460W
AC INPUT
100-240V~/7.0A 50/60Hz
DC OUTPUT
+12VA2DC ==/18A MAX
+12VA1DC ==/18A MAX
+12VC ==/18A MAX
+12VBC ==/18A MAX
(+12VA1DC)+(12VA2DC) ==/18A MAX
Dimensions
82mm x 62mm x 220mm

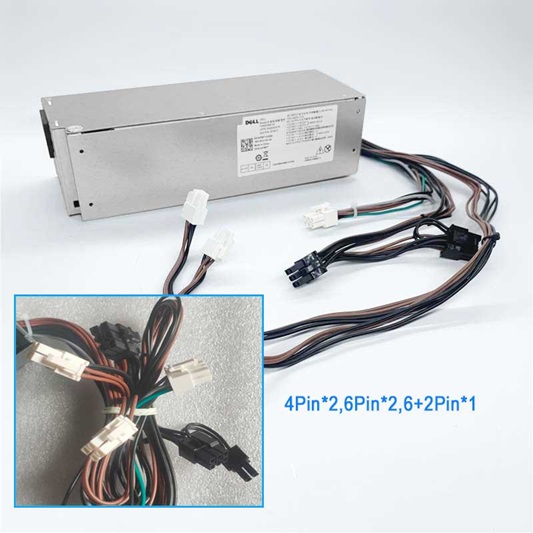

Connectors
(1) 6-Pin Connector (P1) 9.5")
(1) 6-Pin Connector (P5) (11.5") On Same Cable As P3
(1) 6+2 Pin Connector (P3) (15") On Same Cable As P5
(2) +12V 4-Pin Power Connector (P2 22") (P4 22")

Compatible Models (not limited to)
Dell OptiPlex 7070, Dell OptiPlex 7060, Dell OptiPlex 5060, Dell OptiPlex 5090, XPS 8940, G5-5090, Dell 3901 3910 3900 XE4 T3660 3000MT 5000MT 7000MT

PN : 92WNC ,092WNC, 4FWF7, 04FWF7

Model No : L460EBM-00, H460EBM-00,D460E001P



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell D460E001P Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
