Brand new Dell D250AD-00 250W Power Supply for Dell Optiplex 390 790 990 DT 530s 537s D250AD-00

• Product Details
• Power Supply Tips

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
MAX. OUTPUT POWER: 250W
AC INPUT
100-240V ~ 4.4A, (50-60Hz)
DC OUTPUT
+12V =/ 17.8A,
+5V =/ 15A,
+3.3V =/ 7A,
-12V =/ 0.5A,
+VSB =/ 4A,
This power supply has the following connectors:

Connectors:
(1) 24-Pin ATX Connector (12.5")
(1) +12V 4-Pin Power Connector (24")
(3) SATA Connectors (14.5") (9" & 13" on the same cable)

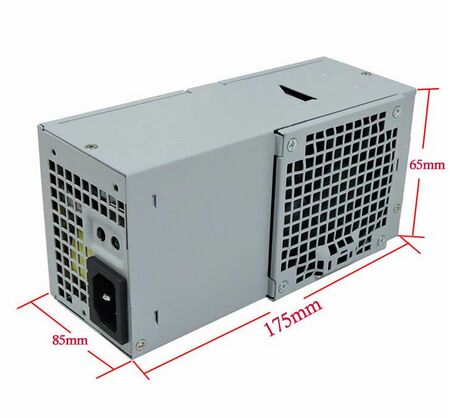

Dimensions
85mm x 65mm x 175mm

Model:D250AD-00 L250NS-00
DP/N: HY6D2 0HY6D2
REF.NO: DPS-250AB-68A CN-0HY6D2-17972-22B-6MM1-A00

Compatible Models Dell Inspiron 530s Slim Desktop SFF, Dell Inspiron 580s Slim Desktop SFF, Dell Studio 537s Slim Desktop SFF, Dell Inspiron 531s Slim Desktop SFF , Dell Inspiron 620s Slim Desktop SFF, Dell Studio 540s Slim Desktop SFF, Dell Inspiron 537s Slim Desktop SFF, Dell Optiplex 3010 DT, Dell Studio 560s Slim Desktop SFF, Dell Inspiron 540s Slim Desktop SFF, Dell Optiplex 390 Slim Desktop SFF, Dell Vostro 200s Slim Desktop SFF, Dell Inspiron 545s Slim Desktop SFF, Dell OptiPlex 7010 DT, Dell Vostro 220s Slim Desktop SFF, Dell Inspiron 546s Slim Desktop SFF, Dell Optiplex 790 Slim Desktop SFF, Dell Vostro 230s Slim Desktop SFF, Dell Inspiron 560s Slim Desktop SFF, Dell Optiplex 9010 DT , Dell Vostro 260s Slim Desktop SFF, Dell Inspiron 570s Slim Desktop SFF, Dell Optiplex 990 Slim Desktop SFF, Dell Vostro 400s Slim Desktop SFF

HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new dell D250AD-00 Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
