Home :: HIKVISION Power Supply :: HIKVISION PSF250MP-60 Power Supply

Brand new CWT PSF250MP-60 PSF220MP-60 For HIKVISION DVR Power Supply SATA*8

PSU for CWT 20P IDE8 250W Power Supply PSF250MP-60 ST-250MAC-05E ST-252MAC-05E PSF220MP-60, enjoys 3 Months Warranty,30-Day Money Back!

HIKVISION PSF250MP-60 Power Supply

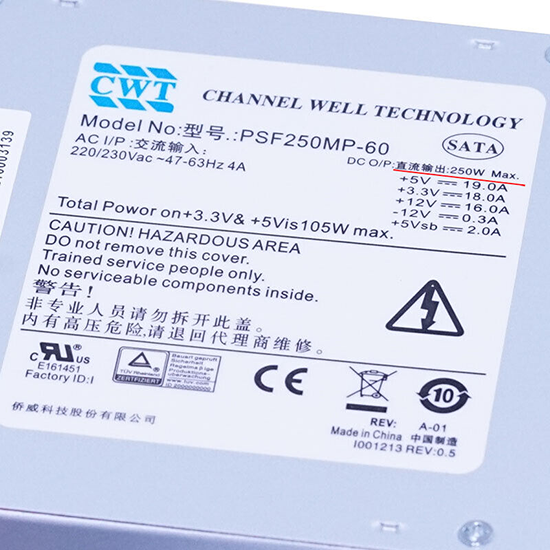

Brand new CWT PSF250MP-60 220/230VAC 250W monitor DVR 8 serial hard drive power supply.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • part number:CWT PSF250MP-60
  • Number of SATA Ports:8
  • Wattage: 250 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 3 Months Warranty | 30-Day Money Back
  • Compatible Brand:For HIKVISION
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.
Type: Power Supply
Interface Type:20Pin
Graphics Card 12V Pin Number:6 pin
Input Voltage:100-264V
Number of SATA Ports:8
Model Number:ST-250MAC-05E
PFC Type:Active
D-type Bus Number:2
Modular:Non-Modular
condition :95%
250W Server Power Supply ST-250MAC-05E PSF250MP-60 250W DVR power supply PSU For Server FSP250-60GNV FSP300-60
Power ST-250MAC-05E 250W
Applicable models: For Haikang and For Dali and other hard disk recorders.
Model: ST-250MAC-05E

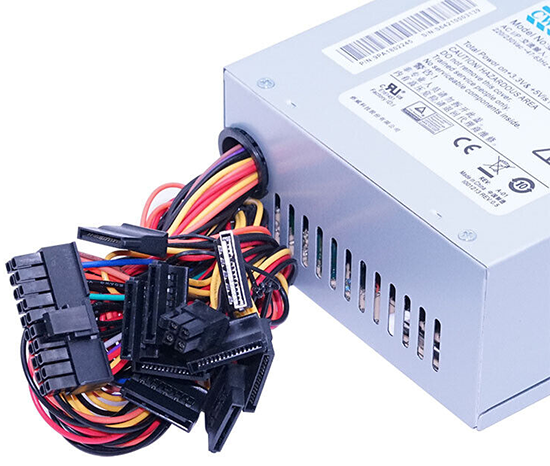

Interface: 20 pins * 1 . SATA (serial port) * 8 . Flat 6 pin * 1 . White small 2 pin * 1 . Black small 2 pin * 1
Dimensions:12.5 *6.4*11 CM
same use: FSP300-60GNV /FSP250-60GNV /FSP270-60GNV /FSP250-60GNV-5K / GPS-350JB A /FSP200-50GSV
haikang dvr - cwt PSF250MP-60 crown shuo dvr
haikang 7932 7816 7732ni k4
CHANNEL WELL TECHNOLOGY



HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new HIKVISION Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
