Brand new Acer D17-180P2A 180W Power Supply

PSU for Acer 6Pin 180W Power Supply D17-180P2A, enjoys 6 Months Warranty,30-Day Money Back!

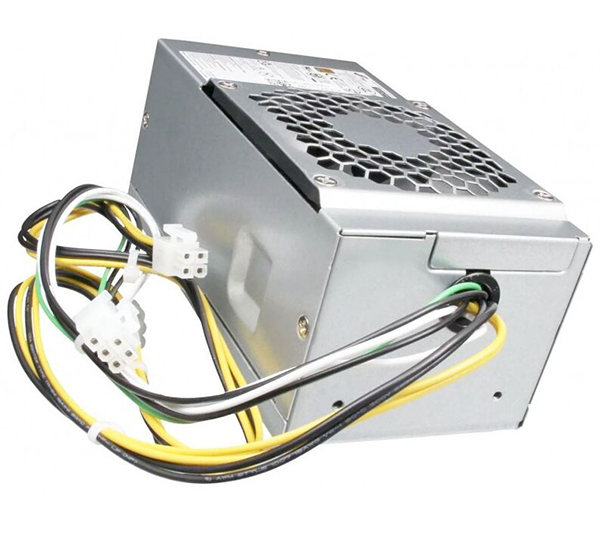

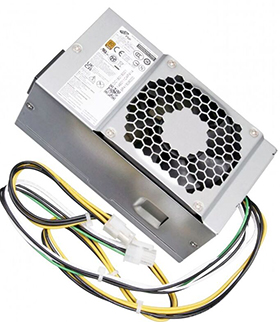

Acer D17-180P2A Power Supply

Brand new D17-180P2A Power Supply for Acer E450 D650 N4270 180W 6+4Pin.All power supplies are tested by our in house technicians and they are guaranteed to function properly.

  • Part Number: D17-180P2A
  • 6+4 pin Connectors
  • Wattage: 180 WATT
  • Condition:
    Brand new, Tested, Working Good
Our Price : AU$
  • Qty:
$ QTY:2-5
$ QTY:6-10
$ QTY:11+
  • Availability: In stock
  • Condition: Brand new, Tested, Working Good
  • Warranty: 6 Months Warranty | 30-Day Money Back
  • Compatible Brand:For Dell
  • Certification:CE FCC ROHS

Product Details

Please make sure that you are ordering the correct power supply. All of the compatible models listed below come in different sizes and each size has a different power supply. Please check the part #'s, pictures and specifications carefully to make sure that you are ordering the correct power supply.

PSU For Acer 6Pin 180W Power Supply PA-1181-10AC PA-1181-10AB FSP180-10TGBAA D17-180P2A HK280-72PP

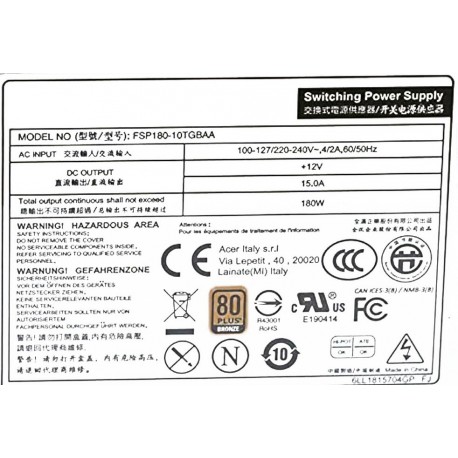

* Model: PA-1181-10AC FSP180-10TGBAA
* Applicable machine: For Veriton E450 D650
* Power: 180W
* AC Input: 100-127/220-240V~, 4/2a, 60/50Hz
* DC Output: +12V ⎓ 15.0a 180W
* Interface: 6pin + 4pin

Part number:
FSP180-10TGBAA, PA-1181-10AC, PA-1181-10AB, D17-180P2A , D17-180P1A

Fit for:
Acer Veriton E450 Series
Acer Veriton D650 Series
Acer N4270 Series
Acer S4660G S2660G S6660G X4660G


HOW TO REPLACE YOUR PC POWER SUPPLY.

1.Remove the dead pc power supply Once you've disconnected all the leads, look at the rear of the case and find the three or four screws holding the power supply in place. Remove them, then gently lift out the PS, making sure that the cabling doesn't get tangled on, say, a RAM module or expansion card and accidentally pull it loose.

2. Install the new Acer D17-180P2A Pc power supply Out with the old, in with the new. Make sure the replacement Pc power supply is set to the correct voltage. Once the old PS is out, put the new one in its place and screw it in. Now just reverse the steps you performed: connect the leads to their respective outlets, replace any extracted components, and consult your photos to make sure you've left no lead unplugged. (You'd be surprised how easy it is to forget, say, the DVD lead, especially when you've spent 10 minutes trying to wedge in that pesky front-panel lead.)

3. Fire it up Before you close up the case, make sure everything works. Connect the power cord to the Pc power supply, plug in your monitor and keyboard, and fire up the machine. Unless you've failed to connect the main leads to the motherboard, it should come right to life, just like before. Let it boot completely, then check to make sure there's power to the optical drive(s) and, if applicable, the front panel.
